GIGABYTE B760M-H LGA1700 Motherboard
5.000,00 EGP
- Description
- More Offers
- Store Policies
- Inquiries
Description
Description

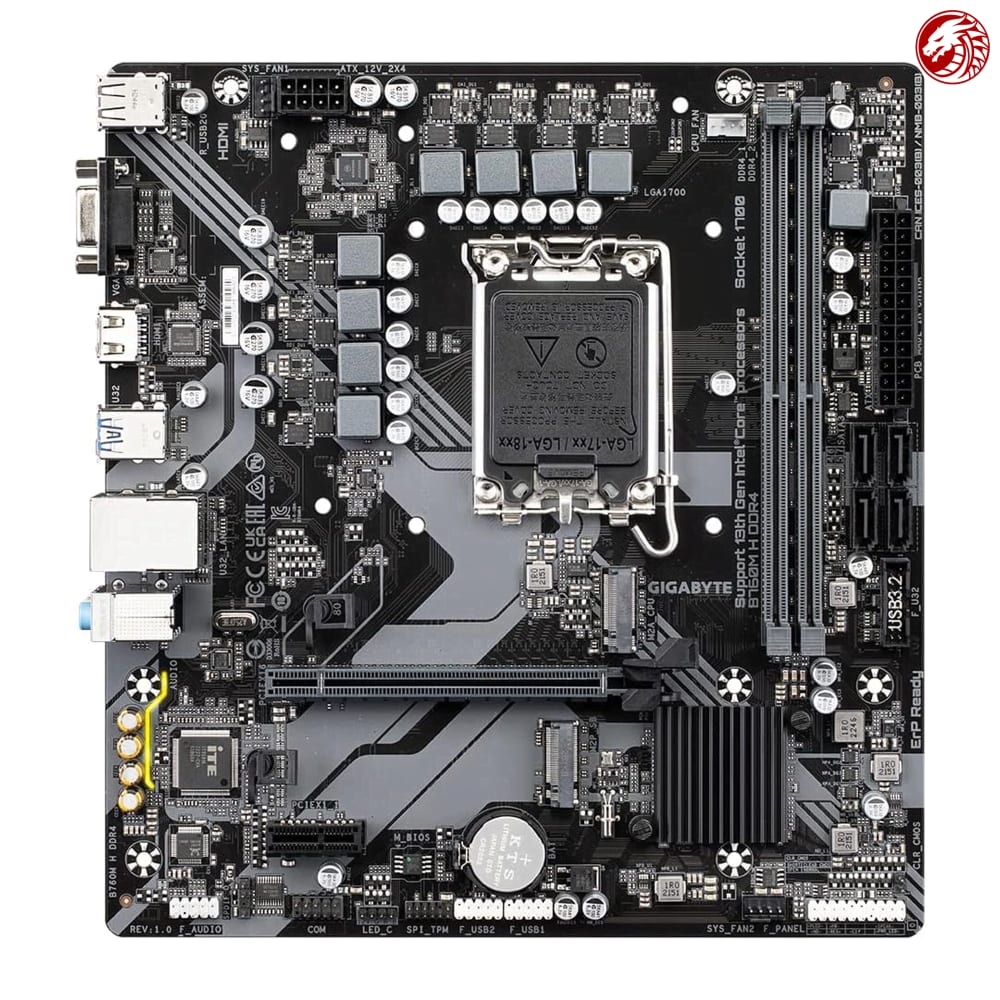

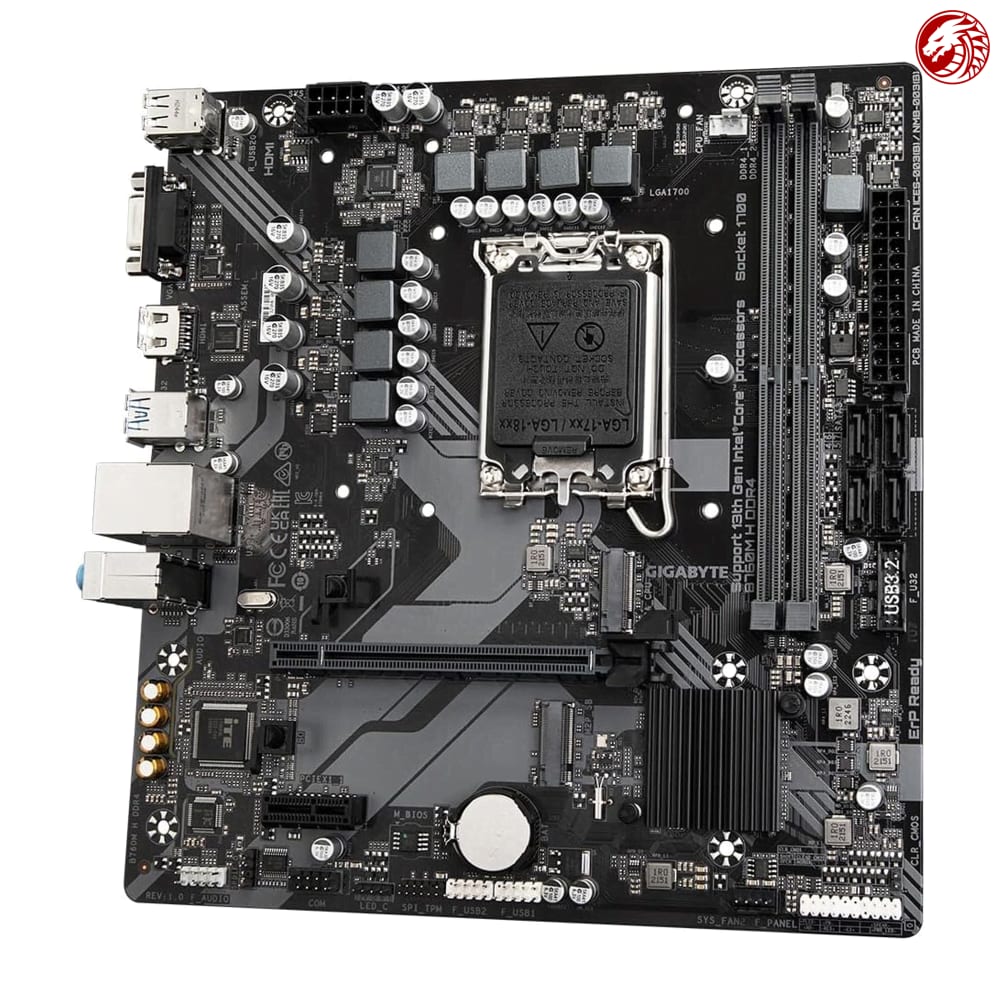

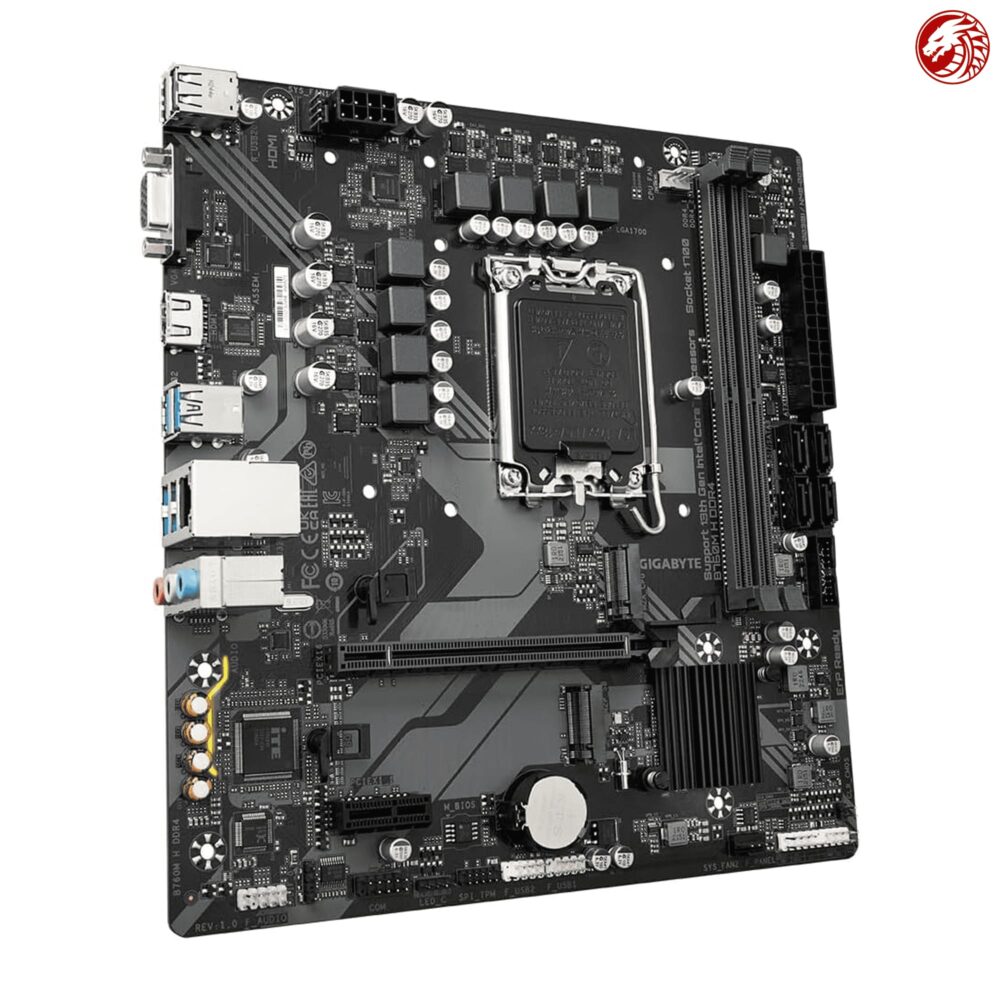

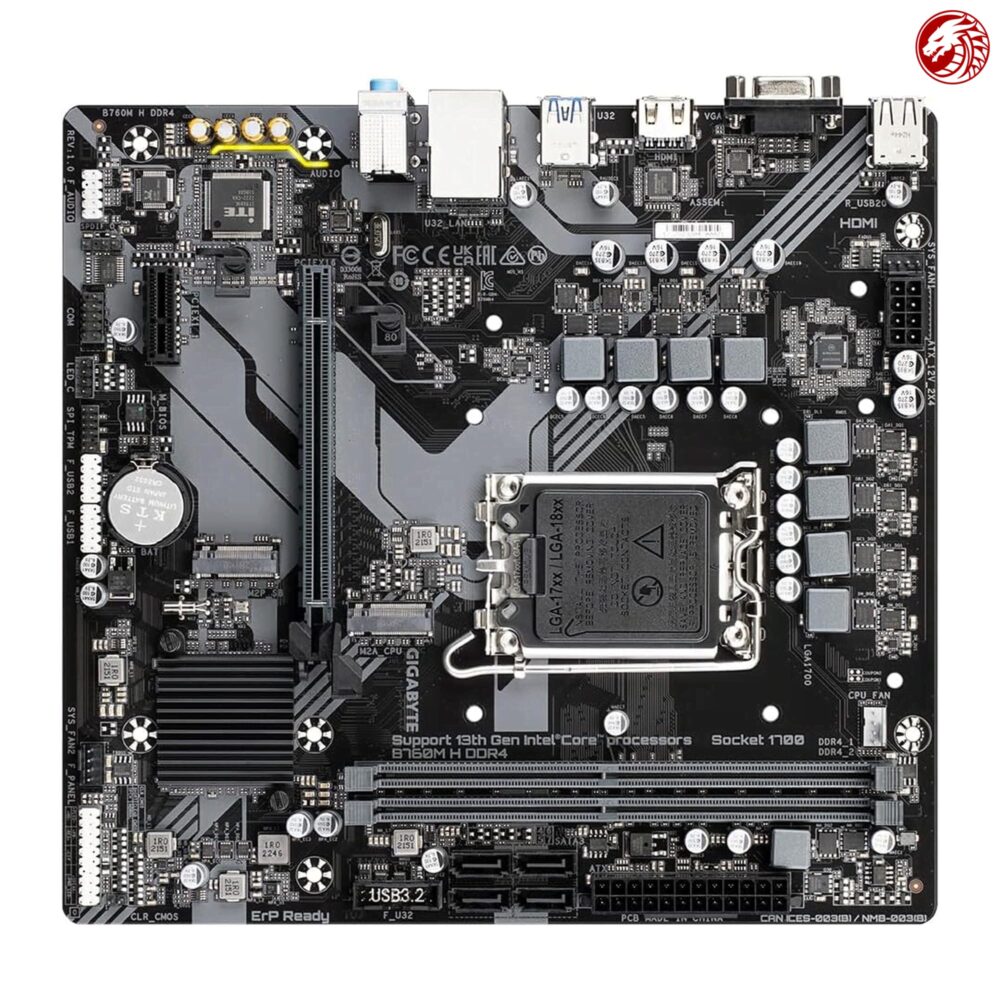

GIGABYTE B760M-H DDR4 LGA1700 Micro-ATX Motherboard
| Feature | Specification |
|---|---|
| Socket | LGA1700 (Intel 12th-14th Gen) |
| Chipset | Intel B760 |
| Memory | 2x DDR4 DIMM (64GB max, 3200MHz OC) |
| Expansion Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| Storage | 2x M.2 PCIe 4.0, 4x SATA 6Gb/s |
| USB | 6x USB 3.2 Gen1, 6x USB 2.0 |
| Networking | Realtek GbE LAN |
| Form Factor | Micro-ATX (23.0×21.5cm) |
🌟 Processor Support
- ⚡ LGA1700 Socket – Compatible with Intel 12th, 13th, and 14th Gen Core processors
- 🧠 VRM Design – 6+1+1 phase digital power delivery for stable performance
- 🔌 Power Connectors – 24-pin ATX + 8-pin EPS for reliable power delivery
❄️ Cooling & Memory
- 🌀 Smart Fan 6 – Multiple temperature sensors and hybrid fan headers
- 🧊 Memory Support – DDR4 up to 3200MHz (OC), XMP profile support
- 🌡️ Thermal Design – Optimized layout for better heat dissipation
🛠️ Expansion & Storage
- 💾 Dual M.2 Slots – PCIe 4.0 x4 support for NVMe SSDs
- 🔄 SATA Connectivity – 4x SATA 6Gb/s ports with RAID support
- 🎮 PCIe 4.0 x16 – Reinforced slot for high-end graphics cards
🔌 Connectivity Features

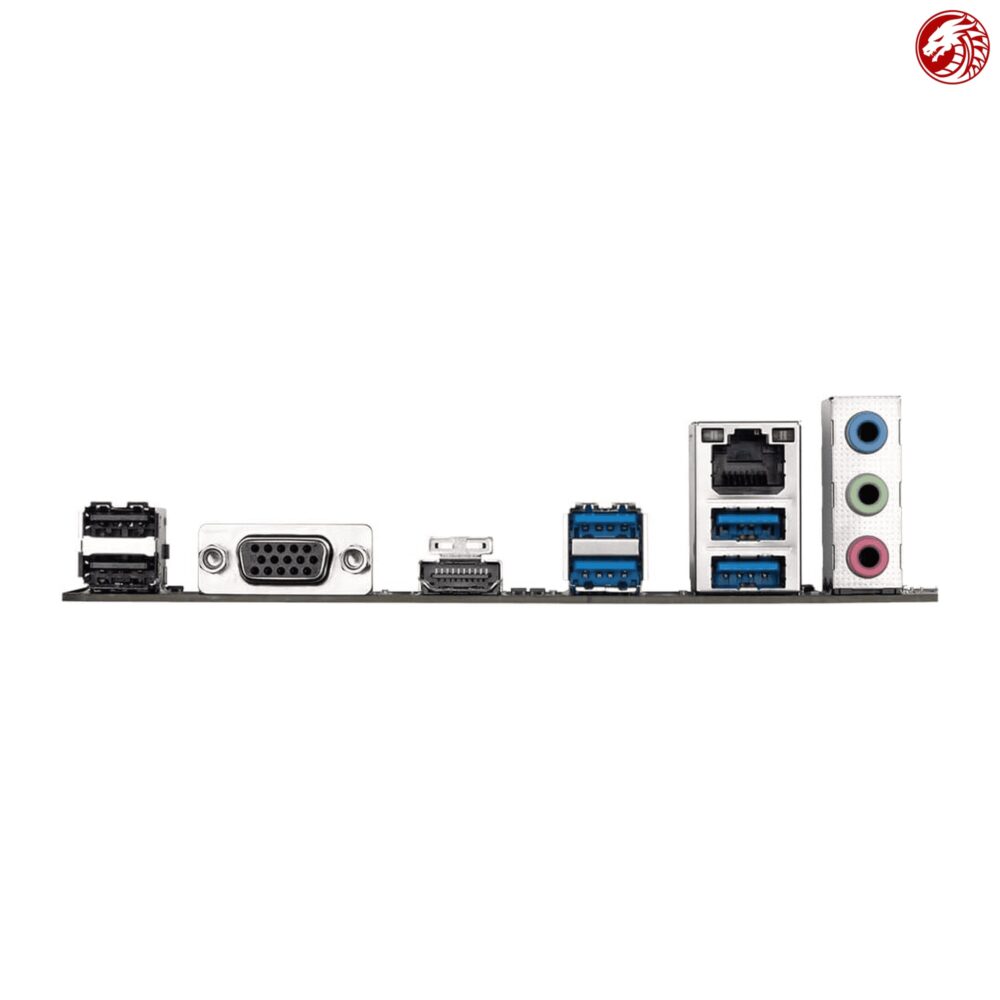

- 📶 Rear I/O – HDMI 2.1, D-Sub, 4x USB 3.2 Gen1, 2x USB 2.0, LAN, audio jacks
- 💡 Internal Headers – USB 3.2 Gen1, USB 2.0, front panel audio
- 🎧 Audio – Realtek HD Audio with 7.1-channel support
📦 Package Contents
- GIGABYTE B760M-H motherboard
- I/O shield
- SATA cables
- User manual
- Driver disc
⚙️ Technical Specifications
| Detail | Value |
|---|---|
| BIOS | 128Mb AMI UEFI |
| Fan Headers | 1x CPU, 2x System |
| RGB Support | 1x RGB LED header |
| OS Support | Windows 10/11 64-bit |
| Warranty | 3 Years |
