Description

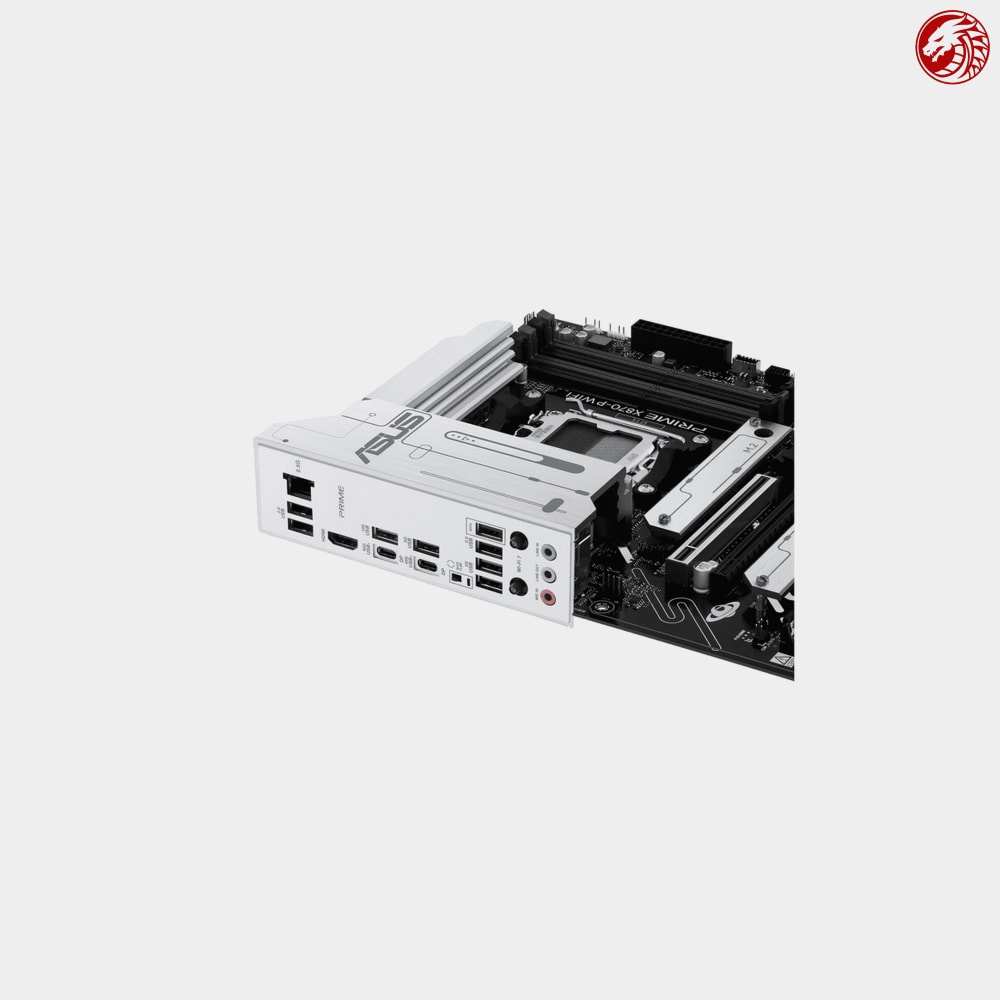

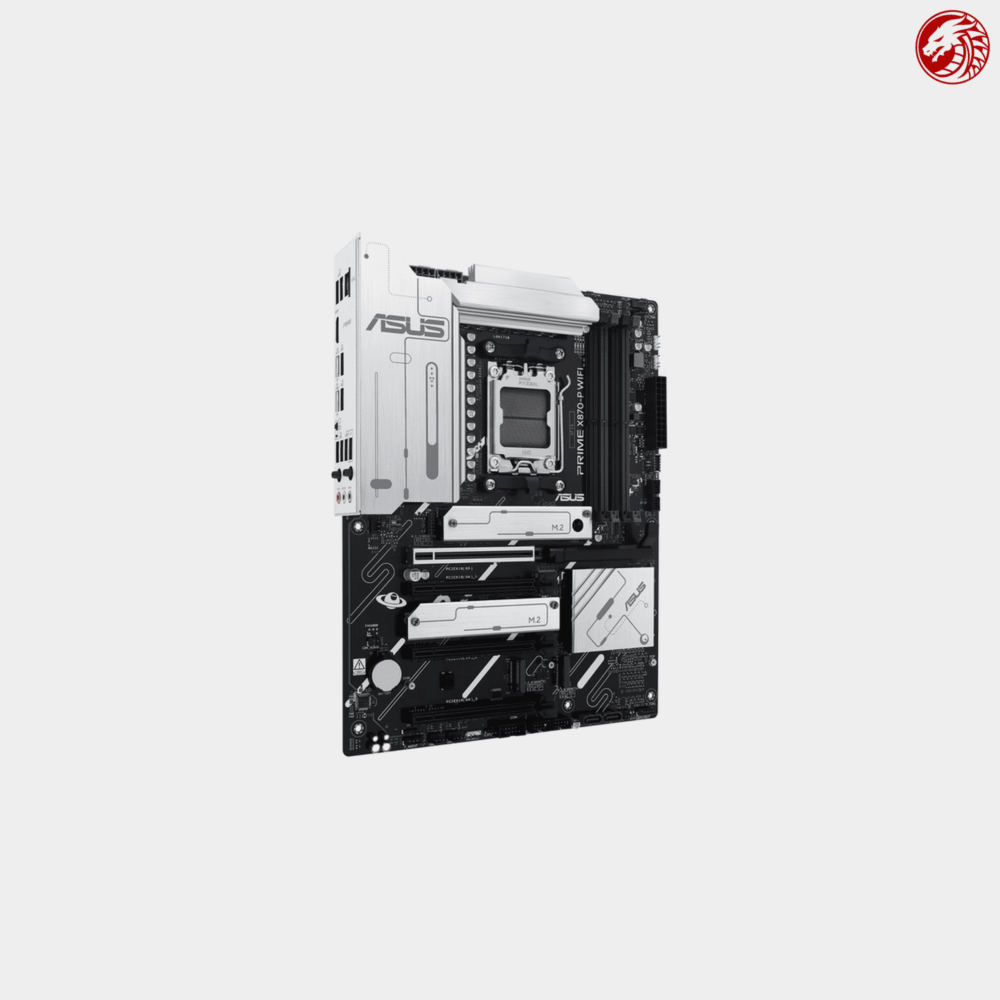

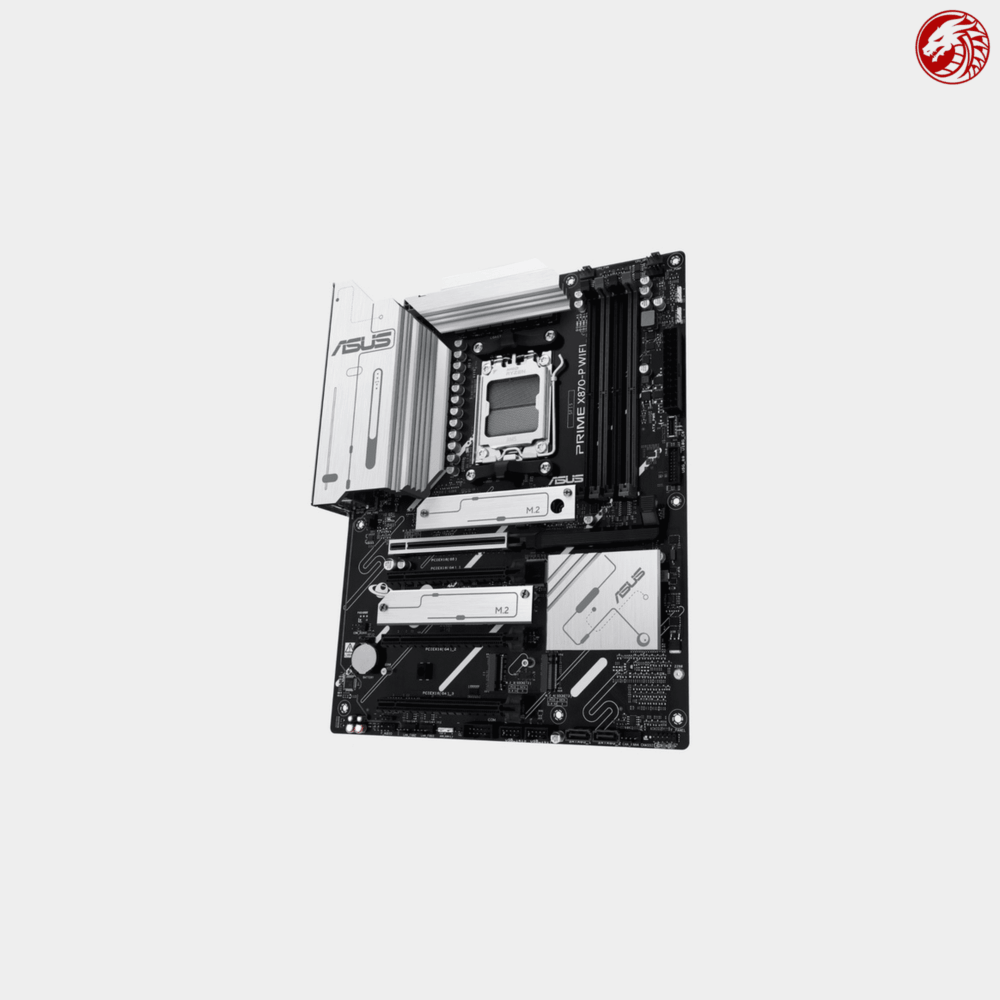

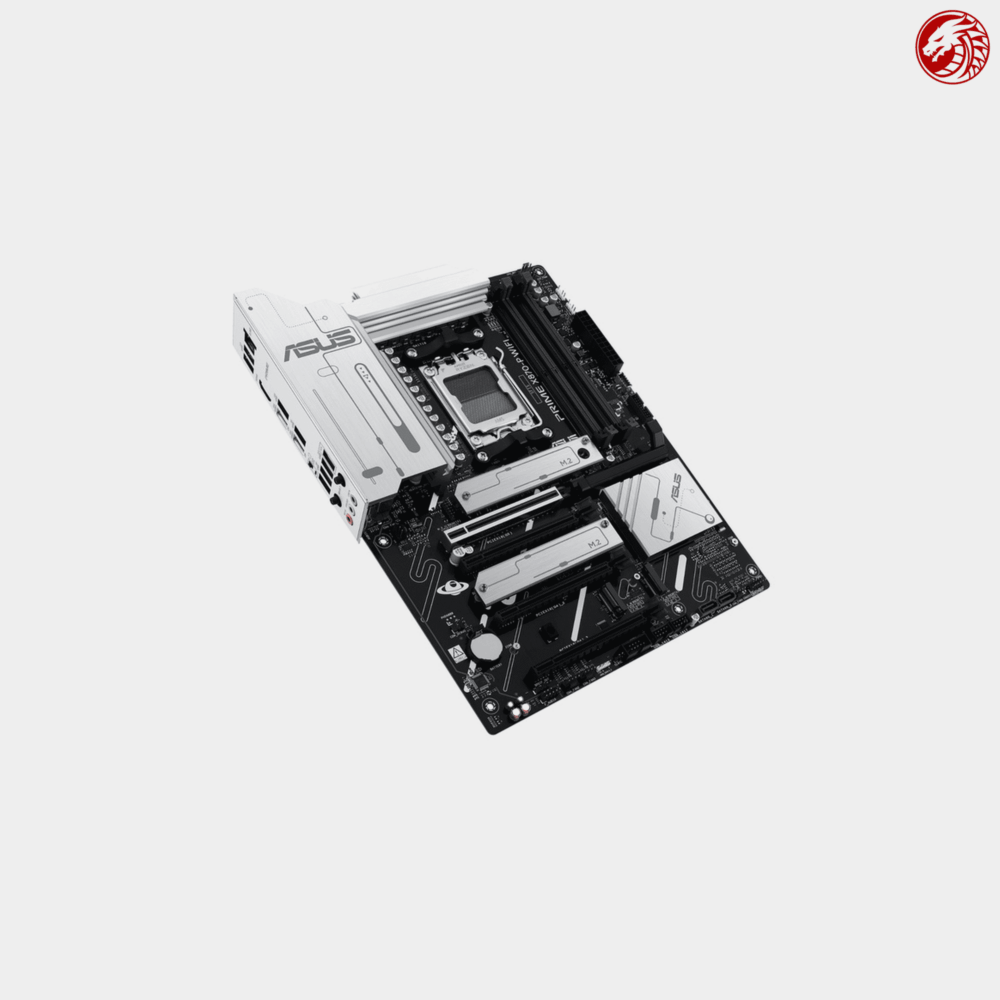

ASUS PRIME X870-P WIFI Motherboard

Feature Specification
Model PRIME X870-P WIFI
Socket AM5 (LGA 1718)
Chipset AMD X870
Form Factor ATX (305 x 244mm)
Memory Support 4x DDR5 DIMM, 192GB Max, 8000+MT/s (OC)
PCIe Slots 1x PCIe 5.0 x16, 3x PCIe 4.0 x16
Storage 4x M.2 (1x PCIe 5.0, 2x PCIe 4.0, 1x PCIe 3.0), 2x SATA 6Gb/s
Wireless WiFi 7 (802.11be), Bluetooth 5.4
LAN Realtek 2.5Gb Ethernet

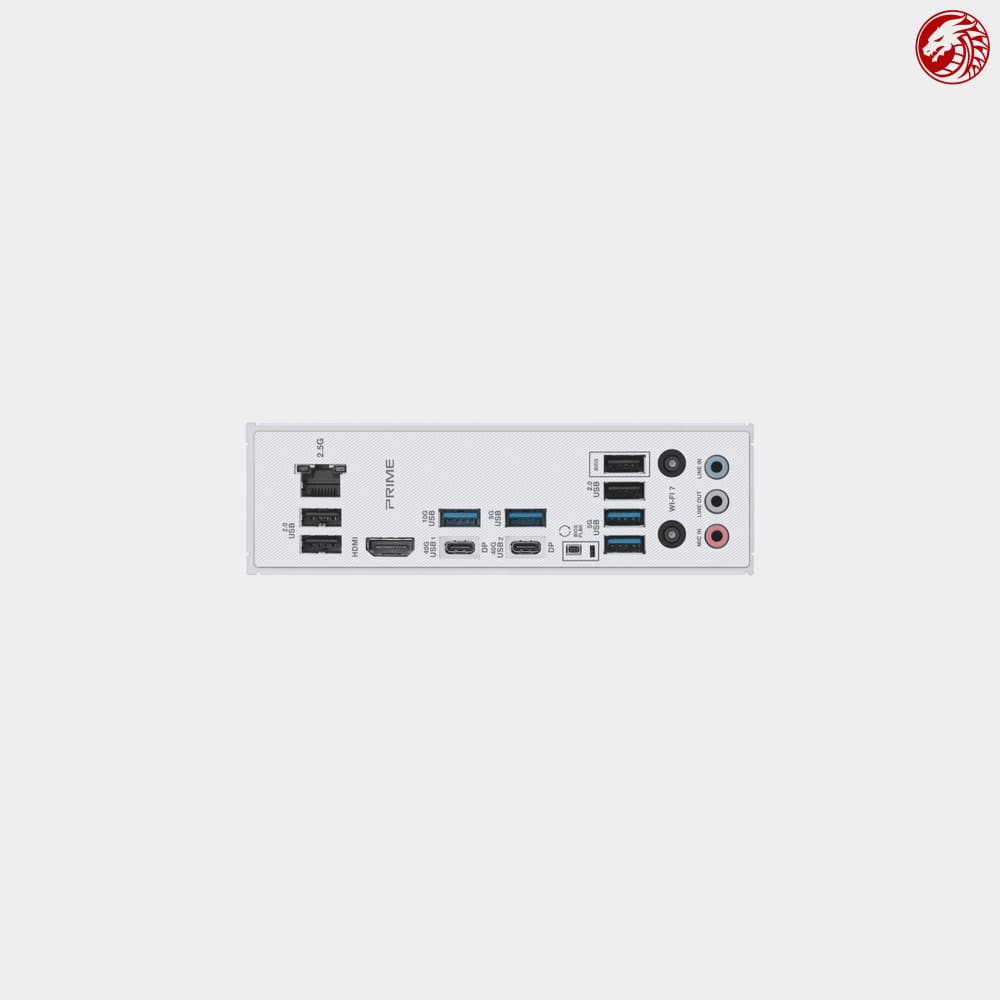

USB Ports 2x USB4 (40Gbps Type-C), 1x USB 10Gbps, 3x USB 5Gbps, 4x USB 2.0
Audio Realtek 7.1 Channel HD Audio
Power Design 14+2+1 Phase (80A DrMOS)

🌟 Key Features

  • Next-Gen Connectivity: WiFi 7 and USB4 (40Gbps) support for ultra-fast wireless and wired connections
  • 🚀 PCIe 5.0 Ready: Supports next-gen GPUs and PCIe 5.0 NVMe SSDs with x16 slot and M.2 support
  • 💾 Advanced Storage: Four M.2 slots including PCIe 5.0 x4 (128Gbps) for blazing-fast storage
  • 🔋 Robust Power Delivery: 14+2+1 phase VRM with 80A power stages for stable overclocking
  • 🛠️ DIY-Friendly: Q-Release GPU latch, M.2 Q-Latch, and pre-mounted I/O shield

🛠️ Technical Highlights

  • Memory Optimization: Supports AMD EXPO and ASUS AEMP for DDR5 overclocking up to 8000+MT/s
  • Cooling Solution: VRM heatsinks, dual M.2 heatsinks, and AI Cooling II for thermal management
  • AI Features: AI Networking II and AI Cooling II for automated performance optimization
  • Build Quality: 8-layer PCB with ProCool connectors and alloy chokes

📦 What’s Included

  • ASUS PRIME X870-P WIFI Motherboard

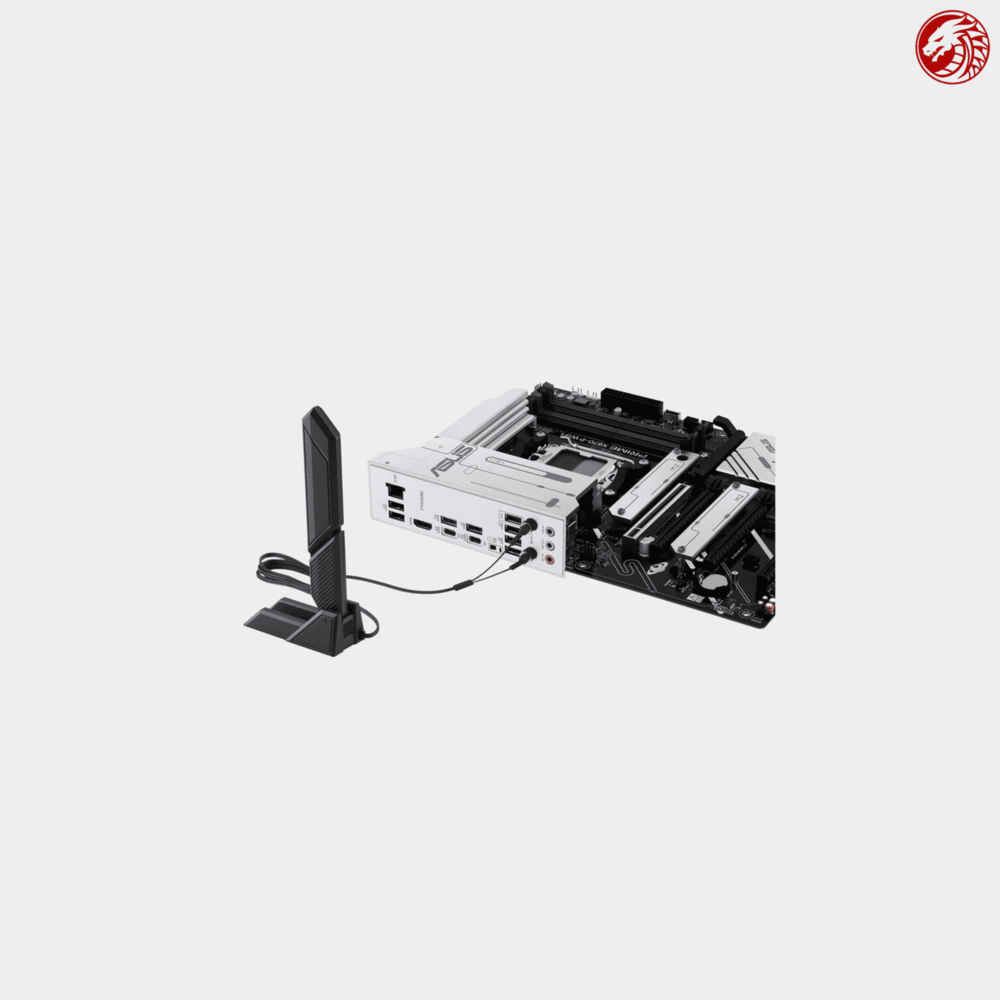

  • WiFi Q-Antenna
  • 2x SATA 6Gb/s cables
  • M.2 installation kit
  • Quick start guide
